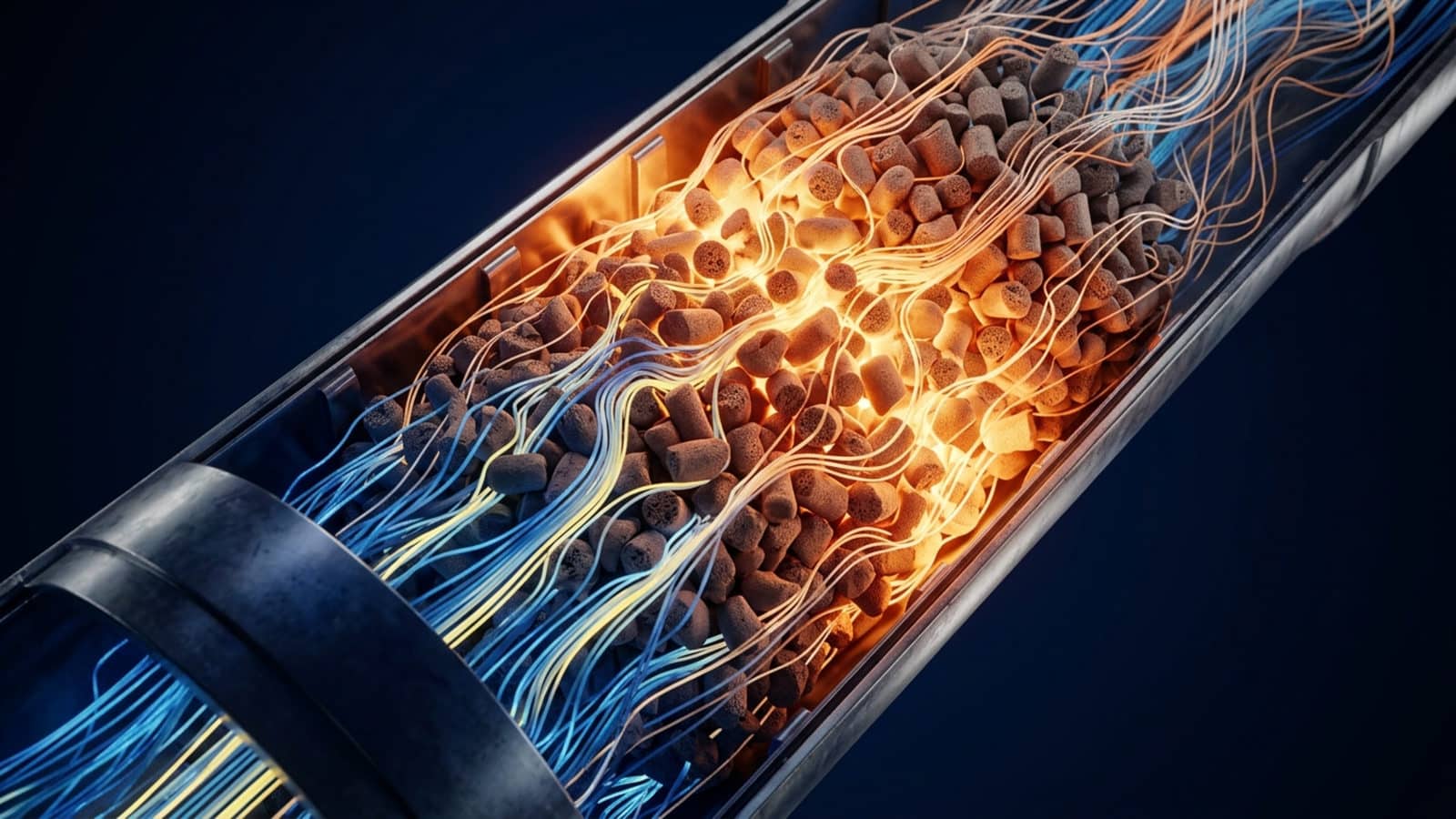

Technical continuity frequently breaks down the moment a catalyst leaves the micro reactor lab. A formulation that works very well as a high surface area powder in the lab may face significant challenges when moving to pilot-scale reactors, where lab environments are replaced with larger-scale complexities, including those related to heat and mass transfer, pressure drop, and operational attrition. Scaling processes with multiphase feedstocks exposes this physical reality; to operate successfully over the useful lifetime of the catalyst, the catalyst must transition from a fine powder to an engineered formed substrate at scale.
Developing a chemistry that allows the powder to be formed without generating undesired side reactions or severe degradation in activity can be a critical engineering hurdle, especially when designing for non-traditional feedstock applications. Ultimately, this dictates the catalyst’s activity, selectivity, and stability during operation.
To bridge the gap between laboratory success and commercial viability, development programs must recognize these physical constraints early.
Early design oversights in catalyst scale-up
The most frequent oversight we see in startup programs is failing to account for cost, time, and manufacturability early in the catalyst design phase. Developers often focus on maximizing a specific compositional feature that drives their reaction. However, they may utilize raw materials or synthesis processes that are cost-prohibitive or lack process controls at commercial volumes.
Another overlooked feature is the form factor penalty. By starting and remaining solely at the powder level, these programs delay addressing the form factor. The physical shape, size, strength, and porosity of the catalyst must address the physical realities of a commercial reactor for successful operation. Establishing a viable design for the form factor is essential for moving beyond laboratory reactor designs. Engineers must understand how that shape evolves, while still preserving the benefits of the original powder formulation.
Maintaining technical continuity across equipment scales
Equipment dynamics change at various intervals as scale increases. This means process specifications cannot remain static. Scaling a catalyst from hundreds of grams to a few kilograms, then to the 10 kg to 500 kg range, and beyond requires entirely different manufacturing equipment.
Rather than simply repeating the lab recipe, engineers must implement new process controls and variable specification ranges at each physical scale jump. These evolving specifications are necessary to minimize intra-batch and batch-to-batch variability. Consequently, programs must transition to shaped forms earlier in the process, before a pilot demonstration is underway. Rather than relying on dozens of isolated, small-scale powder batches, a program must ultimately demonstrate the ability to produce a single, fairly uniform batch in the 10 kg to 500 kg range that performs effectively in its formed state in the pilot reactor.
Benefits of manufacturing and developer partnerships
Startups frequently face the difficult decision of utilizing off-the-shelf catalyst and sorbent materials versus developing their own formulation. Multiple factors can impact this decision, including optimal performance, IP control, economic realities, bandwidth limitations, and material accessibility.
While off-the-shelf options may be ideal for certain materials, other technologies will require engagement in custom development and scale-up to realize the value proposition of their technology.
Focusing founder capital on the reactor system
For Fischer-Tropsch systems, system economics and offtake mapping are often under-considered. These reactors generate a range of products rather than a single targeted output. Optimizing the system to maximize the specific product mix a program intends to sell requires dedicated engineering work on the reactor design itself.
By addressing manufacturability and custom form factor shaping at the 10 kg to 500 kg pilot scale, technical founders can focus their capital and attention on the evolving demands of their complex reactor systems.
